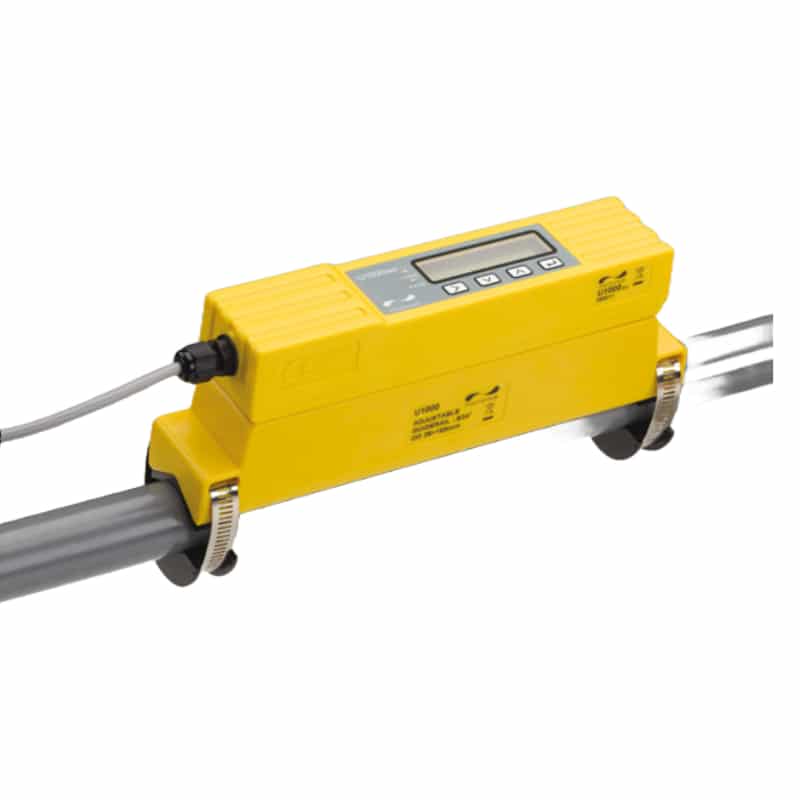

U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter

$ 91.39

U1000MKII-FM Ultrasonic Fixed Clamp-on Flow MeterProduct Description:The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter is a permanent/ fixed clamp-on metering solution that utilises ultrasonic technology to measure flow rate and total flow from outside the pipe. All models include a volume pulse output; OPTIONAL Modbus OR M-Bus OR 4-20mA flow proportional outputs are also available. Please see the table below for an overview of the U1000MKII-FM models.SKUTitleMax. Pipe SizeOutputsVolume PulseModbusM-Bus4-20mA804-11001400U1000MKII-FM Flow Meter with Pulse Output for 4″ Pipes4″(22-115 OD/ 20-110 ID)YesNoNoNo804-11004600U1000MKII-FM Flow Meter with Pulse Output for 6″ Pipes6″(125-180 OD/ 105-165 ID)YesNoNoNo804-11001401U1000MKII-FM Flow Meter with Pulse & 4-20mA Outputs for 4″ Pipes4″(22-115 OD/ 20-110 ID)YesNoNoYes804-11004601U1000MKII-FM Flow Meter with Pulse & 4-20mA Outputs for 6″ Pipes6″(125-180 OD/ 105-165 ID)YesNoNoYes804-11001402U1000MKII-FM Flow Meter with Pulse & Modbus Outputs for 4″ Pipes4″(22-115 OD/ 20-110 ID)YesYesNoNo804-11004602U1000MKII-FM Flow Meter with Pulse & Modbus Outputs for 6″ Pipes6″(125-180 OD/ 105-165 ID)YesYesNoNo804-11001403U1000MKII-FM Flow Meter with Pulse & M-Bus Outputs for 4″ Pipes4″(22-115 OD/ 20-110 ID)YesNoYesNo804-11004603U1000MKII-FM Flow Meter with Pulse & M-Bus Outputs for 6″ Pipes6″(125-180 OD/ 105-165 ID)YesNoYesNo The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter can be used as a stand-alone meter or as part of an integrated management system.It is simple to install as it has been factory configured and, therefore, requires minimal programming on-site. The user needs only adjust the guide rail and sensor assembly, connect the Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter to the power, and enter the inside diameter of the pipe and the pipe material. Moreover, clamp-on installation and transit-time ultrasonic technology enable non-invasive measurements, eliminating the need for mechanical parts to be inserted into the pipe and/or for the system to be drained or shut down.The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter functions by simultaneously transmitting ultrasound between the clamp-on transducers in both directions. When ultrasound is emitted in the direction of flow the speed of the sound is accelerated; when it is emitted in the opposite direction the speed of the sound is decelerated. The time difference between ultrasound emissions is directly proportional to flow velocity. Using the flow velocity and the pipe’s cross-sectional area, the operator can calculate the volumetric flow.The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter has a flow range of 0.1m/s to 10m/s (0.3ft/s to 32ft/s) and an accuracy of ±1% to ±3% (for 0.3m/s/ 1ft/s). Please see the video below for an overview of how to use the Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter.Micronics U1000 U Ultrasonic Clamp On Flow MeterMeasurements are displayed on the Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter’s backlit LCD. Via this display, the user can also view installation and service information.The Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter is a compact, cost-effective, and reliable alternative to traditional in-line meter installations. This rugged ultrasonic flow meter provides consistent performance in industrial environments.ApplicationsIndustriesBuilding ServicesEnergy ManagementWater TreatmentChemicalPharmaceuticalPetrochemicalFoodRecommended ForHot water < 85°C (185°F)Chilled waterPotable waterDemineralised waterChilled Water with GlycolApplications/ UseHot water metering and flow measurementFlow measurement for heat meteringChilled water metering and flow measurementFlow measurement for chilled water energy meteringPotable water metering and flow measurementProcess water metering and flow measurementUltrapure water measurementKey Features:A permanent/ fixed clamp-on flow metering solutionUtilises ultrasonic technology to measure flow rate and total flow from outside the pipeVolume pulse outputOPTIONAL Modbus OR M-Bus OR 4-20mA flow proportional outputs available (see table above)OPTIONAL outputs are aM&T and BEM compatibleUse as a stand-alone meter or as part of an integrated management systemSimple-to-install: adjust the guide rail and sensor assembly, connect to the power, and enter the inside diameter of the pipe and the pipe materialFactory configured: requires minimal site configurationNon-invasive measurementSimultaneously transmits ultrasound between the clamp-on transducers in both directionsThe time difference between the ultrasound transmissions is directionally proportional to the flow velocityUse the flow velocity and the pipe’s cross-sectional area to calculate the volumetric flowFlow range: 0.1m/s to 10m/s (0.3ft/s to 32ft/s)Accuracy: ±1% to ±3% (for 0.3m/s to 1ft/s)Backlit LCDDisplays measurements and installation and service informationRugged: IP54Compact, cost-effective, and reliable alternative to traditional in-line meter installationsRugged ultrasonic flow meter provides consistent performance in industrial environmentsWhat’s Included?Micronics U1000MKII-FM Ultrasonic Fixed Clamp-on Flow Meter with Volume Pulse OutputOPTIONAL Modbus OR M-Bus OR 4-20mA Flow Proportional Output4” OR 6” Pipe AdaptersBandingAcoustic Interface Gel
