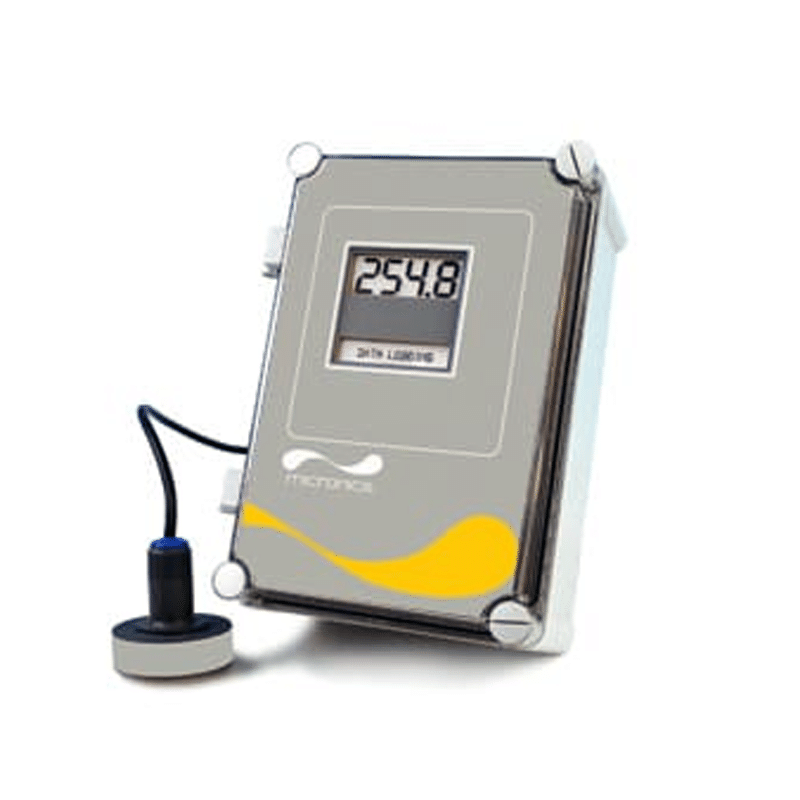

Micronics UF OC5000 (OCF 6.1) Open Channel Flow Monitor

$ 92.28

DescriptionUF OC5000 (OCF 6.1) Open Channel Flow Monitor Product Details: The UF OC5000 (OCF 6.1) Open Channel Flow Monitor is designed for precise and reliable flow monitoring in open channels. It features the PZ15 sensor, capable of measuring flow up to a maximum range of 4.57 meters. The sensor is connected via a 7.6-meter coaxial cable and is housed in a rugged, watertight NEMA4X (IP66) enclosure made of polyester and polycarbonate, ensuring durability in challenging environments.The monitor includes a white backlit matrix display for clear visibility of flow data, even in low-light conditions, and a 12-digit totalizer for accurate tracking of cumulative flow. Calibration is user-friendly with a built-in 5-key programmer, and sensitivity can be easily adjusted via the keypad to suit specific requirements.Output options include an isolated 4-20mA signal (1000 ohm), and the unit is equipped with two 5 amp SPDT control relays that are programmable for flow proportional pulse output and/or flow alarms. The flow monitor operates on a 100-240VAC 50/60Hz power input with a maximum power consumption of 3 watts. It also features electrical surge protection and RFI filters to safeguard the AC input, sensor, and 4-20mA output.Key Features:Equipped with a PZ15 sensor with a maximum range of 4.57 meters, connected via a 7.6-meter coaxial cable.Rugged, watertight NEMA4X (IP66) enclosure made from polyester and polycarbonate for protection in harsh environments.Features a white backlit matrix display and a 12-digit totalizer for easy monitoring and precise flow data tracking.Simple calibration with a built-in 5-key programmer and keypad-adjustable sensitivity for customizable settings.Includes isolated 4-20mA output and two programmable 5 amp SPDT control relays for flow alarms and pulse outputs.What’s Included:UF OC5000 (OCF 6.1) Open Channel Flow Monitor unitPZ15 sensor with a maximum range of 4.57 meters7.6-meter coaxial sensor cablePower input for 100-240VAC 50/60Hz with a maximum power consumption of 3 wattsElectrical surge protection and RFI filters for AC, sensor, and 4-20mA outputInstallation and operation manual
