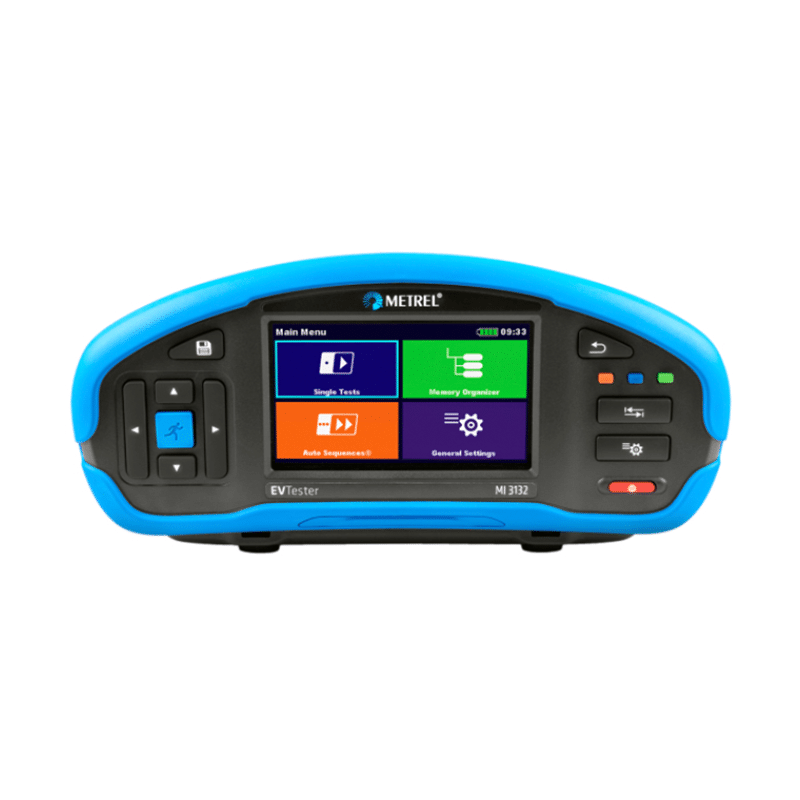

Metrel MI3132 EV Electric Vehicle Tester

$ 91.82

DescriptionMetrel MI3132 EV – Electric Vehicle TesterProduct Details:The Metrel MI3132 EV – Electric Vehicle Tester is a portable battery powered test instrument with IP protection and is designed specially for use in electronic vehicle testing supporting the UN ECE R1000 Annex 4A, 4B and ISO 6469-3 standards, intended for measurement of insulation resistance of electric vehicles. With its ergonomic and hand held design the MI3132 offers an intuitive user interface with 4.3″ touch screen colour LCD screen and fully programmable Auto Sequences.Offering a wide range of testing, the MI3132 allows users to test and measure Insulation measurement from 50V to 1500V, insulation resistance, DC voltage measurement, TRMS voltage and frequency and four wire Micro 0hm measurements. Low 0hm measurements with 7mA and 200mA DC test current and visual safety and functional inspections. Over voltage category 1000V CAT III and resistance measuring range up to 3 GΩ. The MI3132 offers settable duration and current direction (unidirectional or bidirectional) in the Micro 0hm measurement.Standards applied:Mobile Units Electrical SafetyUN ECE R 100 Uniform provisions concerning the approval of vehicles with regard to specific requirements for the electrical power train (2015/505)ISO 6469-3 – Electrically propelled road vehicles Safety specification Part 3: Electrical safetyEMC SafetyIEC/EN 61326 Electrical equipment for measurement, control and laboratory use – EMC requirements – seriesIEC/EN 61326-1 Electrical equipment for measurement, control and laboratory use – EMC requirements – Part 1: General requirementsInstrument safety towards userDirective EMC 89/336/EE on electromagnetic compatibilityIEC/EN 61010 Safety requirements for electrical equipment for measurement, control, and laboratory use – seriesIEC/EN 61010-1 Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirementsIEC/EN 61010-031 Amendment 1 – Safety requirements for electrical equipment for measurement, control and laboratory use – Part 031: Safety requirements for hand-held and hand-manipulated probe assemblies for electrical test and measurementThe MI3132 offers DC resistance and support for single or automated measurements. Using the included PC SW Metrel ES Manager, users are able to measure pre and post processing, preparation of the test structure, download results, store and print documents and use tree-view, table view and graphical view of data.Powered by Li-ion rechargeable batteries and with a built in charger, allowing for use in the field and with its IP54 rating the MI3132 is protected for outdoor use and in challenging environments.Key Features:Insulation resistance measuring according to UN ECE R100 measuring using internal DC sourcePerforming accurate four wire measurements with Kelvin clamps and up to 2 A measuring currentSettable duration and current direction (unidirectional or bidirectional) in the Micro Ohm measurementInsulation range: wide range of insulation test voltages from 50 V to 1500 V, resistance measuring range up to 3 GΩOvervoltage category 1000 V CAT III4.3’’ colour LCD display with touch screenProgrammable AUTO SEQUENCEsHigh degree of protection for outdoor use and rough environmentDC resistance measurementsSupport for single or automated measurementsBuilt-in charger and rechargeable Li-Ion batteries as standard accessoryBT communication with PC, via built-in BT modulePC SW Metrel ES Manager for measurement pre and post processing: preparation of the test structure, result download, tree-view, table view and graphical view, storing and printingWhat’s In The Box?Instrument MI 3132 EV TesterA1551 Soft carrying bagA1707 Set of carrying strapsA1782 4-wire test lead, 2 x 2 m, 2 x 5 mA1781 3-wire test lead, 3 x 1.5 mA1780 2-wire test lead, 2 x 1.5 mA1014 Test probe, blackA1016 Test probe, redA1298 Test probe, brownA1453 Test probe, greyA1013 Crocodile clip, black, 2 pcsA1064 Crocodile clip, red , 2 pcsA1309 Crocodile clip, greenA1727 USB cableA1567 Li-ion battery pack, 7.2 V, 4400 mAhA1569 Power supply adapter 12 V, 3 AInstruction manual (short version)Calibration CertificateSW 1201 PC SW Metrel ES Manager
