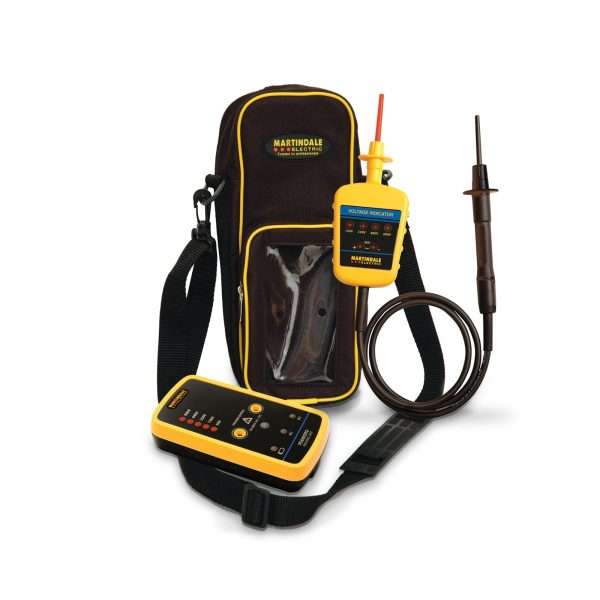

Martindale VIPD150-S Voltage Indicator & PD690-S Proving Unit Kit

$ 91.39

DescriptionMartindale VIPD150 Voltage Indicator & Proving Device KitProduct Details:Voltage Indication VI-15000Instant, clear indication shows if a circuit is live, its voltage range up to 1000V and whether AC or DC. Tough, moulded construction and LEDs, combined with heavy duty, double insulated cable, large finger guard and a retractable, lockable prod sheath make this the safest, most durable and reliable instrument of its type.Proving Device PD690sThe PD690 proving device produces 700V AC/DC to enable voltage indicators and other devices with ranges up to 700V to be checked. It is a portable, battery powered proving unit with the option of being driven from a 12V supply via a car or mains power supply. The kit is supplied with a combination carry case for both VI and PD products.Specifications:Voltage Indication VI-15000 Nominal Voltage Range: 50 – 1000V AC / DC Nominal Voltage Threshold Indications: 50, 100, 200, 400, 690 V DC/AC rms Nominal Voltage threshold tolerance: conforms to BS EN61243-3:2010 Polarity indication: from approx 12V DC/AC rms AC/DC voltage detection: automatic Range detection: automatic Response time: < 0.1s Frequency range: DC, 1 – 400 Hz Test current: < 3.5mA at 1000V DC/AC rms Duty ratio: 30s ON (operated) / 240s OFF (recovery)     Environmental Temperature & Humidity (operating & storage): -10°C to 55°C ? 85% R.H. Altitude: up to 2000m Pollution degree 2 IP rating: IP54 /li>     General Power: from circuit under test Dimensions: 205(L) x 67(W) x 27(D) mm Weight: 130g approx. Includes: instructions    Safety Conforms to BS EN 61243-3:2010 CAT IV 1000V Class II, Double Insulation Pollution Degree: 2 EMC: Conforms to BS EN 61326-1Proving Device PD690700V nominalOperating Temperature -10°C to 40°C at max 70% RHBattery 6 x LR6 / MN1500 1.5V alkaline batteries or equivalentDimensions 143 x 84 x 50mmWeight 400g approx. including battery 2 Years Martindale Warranty
