Sale!

Heatshrink 12/4mm 1.2M Adhesive Lined MW

$ 3.77

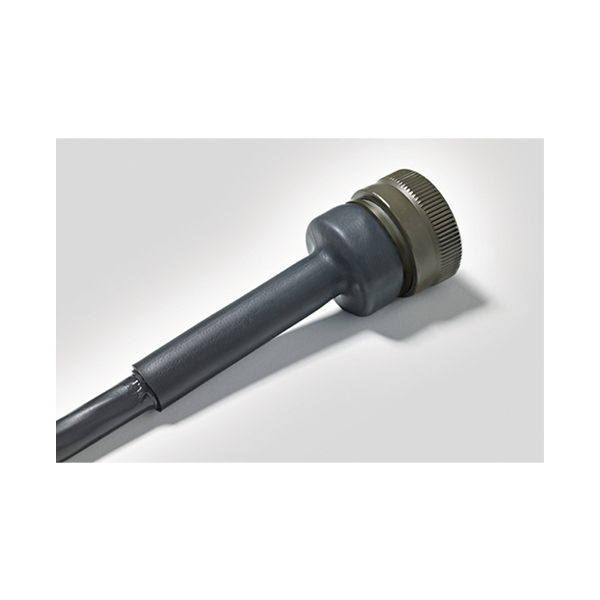

Available in various sizes, see here Heat Shrinkable Tubing adhesive lined EPS-300 12/4 Features Flexible, thin walled polyolefin heat shrink tubing With coextruded hot melt adhesive inner wall Protects against moisture Provides an environmental sealing of complex parts Certifications & Approvals Application Heat shrinkable tubing EPS seals and protects a wide variety of electrical applications like back end connector sealing, connector-to-cable transitions and splices Base Data Colour Black (BK) Description HEATSHRINK EPS 12/4mm 1.8mm WALL PART DESCRIPTION EPS-300 12/4-PO-X-BK Part No. EPS3124 Product Family EPS-300 – 3:1 shrink ratio Product Group Heat Shrinkable Tubing adhesive lined Shrink Ratio 3:1 Product Dimensions Longitudinal Change After Shrinkage -10 % max. Recov. ∅ d max. 4.0mm Supplied ∅ D min. 12.0mm Wall (WT) 1.8mm Material and Specifications Dielectric Strength 15 kV/mm according to IEC 684 P2 Flammability ASTM D2671 (outer layer only) Material Polyolefin, cross-linked (PO-X) Material PO-X Min. Shrink Temperature – °C 120 °C Operating Temperature – °C -55 °C to 110 °C Specifications Specifications SAE – AMS – DTL-23053/4
Categories: ,
