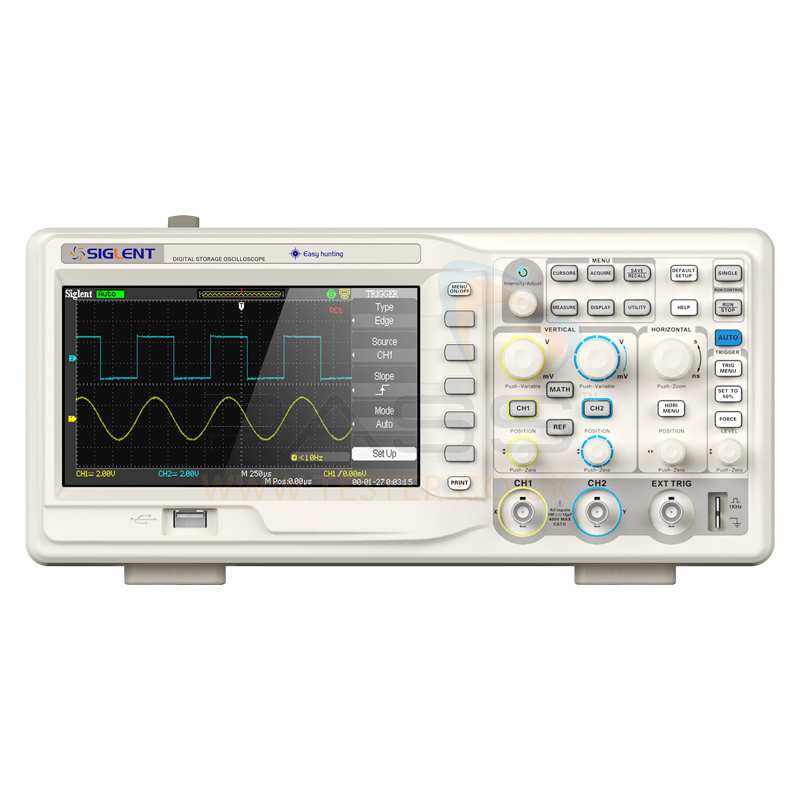

Scope 50MHz Digital Storage Siglent SDS1052DL

$ 99.15

Description Siglent SDS1052DL Digital Oscilloscope The SDS1052DL is a dual-channel digital oscilloscope with bandwidth of 50MHz, 500MSa/S real-time sample rate and 50 GSa/s equivalent sample rate. The device includes the ability to use 2 channels at the same time, and also includes 1 external triggering channel built into the device. Results are shown as clear waveforms on the SDS1052Dl’s 7-inch colour TFT screen, and the device also has backlit buttons for easy interpretation in low light conditions. Also includes in the SDS1052DL are multiple trigger modes; edge, pulse, slop, video and alternate trigger modes are available.  The device also features memory depth of 32kpts and vertical sensitivity range of 2mV/div – 10V/div. The SDS1052DL also has built in digital filter and a recorder function for storing test data. It also has USB and RS-232 ports for downloading this data to PC, and the interface of the device is available in 12 different languages. Model types: Model SDS1022DL SDS1052DL SDS1102DL SDS1202DL Bandwidth 25MHz 50MHz 100MHz 200MHz Channels 2CH 1EXT Real time sampling rate 500MSa/s Equivalent sampling rate 10GSa/s 50GSa/s Memory depth 32k Rise time < 14ns < 7ns < 3.5ns < 1.8ns Input impedance 1MΩ‖17pF Time base range 25ns/div-50s/div 10ns/div-50s/div 5ns/div-50s/div 2.5ns/div-50s/div Scan: 100ms-50s/div Vertical sensitivity 2mV-10V/div Vertical resolution 8bit Trigger source CH1, CH2, Ext, Ext/5, AC Line Trigger types Edge, Pulse, Video, Slope, Alternative Math Operation , -, ×, ÷, FFT Digital filter High pass, Low pass, Band pass, Band Stop Max input voltage ±400V (DC AC Pk-Pk), CAT 1, CATII Internal storage 2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms External storage Bitmap save, CSV save, Waveform save, Setting save Language English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic Interface LAN, USB Host, USB Device, RS-232, Pass/Fail out Display 7 inches(178mm) color TFT(480*234) LCD Power AC 100-240V, 45Hz-440Hz, 50VA Max PC software Can through the computer remote control oscilloscope, extraction waveform analysis data Remark With original source seamless connection, form signal collection, produce integration system Detailed performance parameters and technical index please refer to SDS1000DLSeries Datasheet Accessoires: SDS1052DL Digital Oscilloscope Set of probes USB Cable Manual 220V AC EU power cord ( unit is 220V and 110V selectable )
