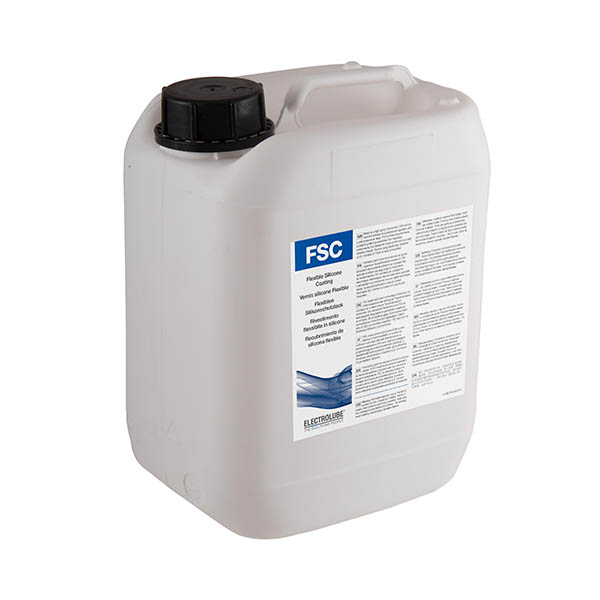

Conformal Coating 5L Flexible Silicone Electrolube

$ 97.48

Electrolube Flexible Silicone Coating Product Details The Electrolube 5L flexible silicone coating is a specialist conformal coating that is formulated based on high-quality silicone resin. It is highly flexible for delicate components, while it exhibits excellent adhesion to a wide variety of substrates and operates within a wide temperature range. It is an ideal choice for humid environments offering excellent protection from moisture. It can be sprayed, dipped or brushed and is fast-drying, allowing for efficient production while it also contains a UV trace that allows inspection of the PCB after coating to ensure complete and even coverage. Features and Benefits Flexible Transparent Very high surface insulation resistance Good dielectric properties Wide operating temperature range High level of protection offered in humid environments May be removed with solvents such as ultra solve (ULS) May be soldered through for rework Viscosity at 20°C is 550mPas Touch Dry Time at 20°C is 10 minutes-15 minutes Shelf life is 48 months Operating temperature ranges between -50°C and 125°C Applications Electronics PCBs Certifications IEC 61086-2 IEC-61086 IEC 60068-2-11 IEC 60068-2-78 IPC-CC-830 MIL-I-46058-C UL94V-1 Specification Attribute Value Package Size 5 L Package Type Can Application PCBs Material Silicone Resin Colour Transparent Maximum Operating Temperature 125°C Minimum Operating Temperature -50°C Trade Name FSC
