Sale!

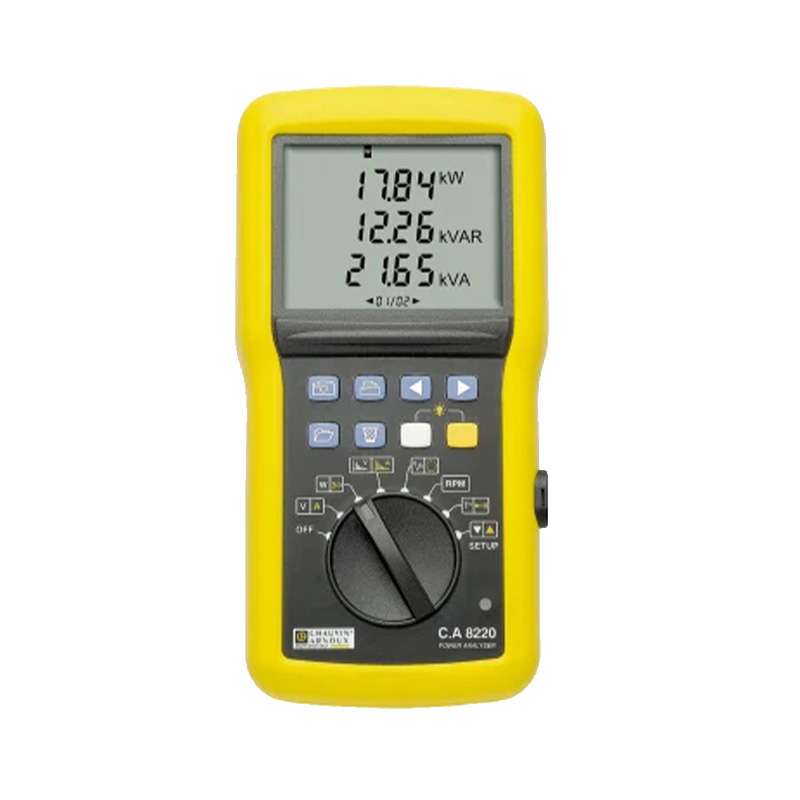

Chauvin Arnoux CA8220 Power Analyser Single Phase c/w RS232/USB adaptor and CD. (Instrument only)

$ 93.26

DescriptionChauvin Arnoux CA8220 Power Analyser Single Phase c/w RS232/USB adaptor and CD. (Instrument only)Product Details:C.A 8220 and C.A 8230 Power AnalysersSingle-phase or balanced three-phase power analyser designed for tradesmen and installers in the public or private construction industry and in maintenance departments.This economical and easy-to-use analyser is suitable for testing electrical installations, especially those with systems which use power electronics.The broad range of measurements it provides (VA, VAR, W, PF…) makes this instrument ideal for technical or technological teaching.Its large graphic display (320 x 240 pixels) serves as a demonstration tool (CA8230 model).The instrument is easy and pleasant to handle and intuitive to use.For enhanced simplicity and safety, it automatically recognises the type of sensor connected.Software PAT (Power Analyser Transfer) greatly increases the instrument’s potential in terms of its configuration, and recovery and processing of data on a PC.Current probes are available as accessories: Ampflex A193 and MN93A.C.A 8220V Max: 600 VRMS.I (max) Arms to 3000 A.Power: 1.2 W → 10 MW – VA, var, PF / Cos / Tan.Accuracy: 0.5%.Harmonics: THD, 1 to 50th order rk rms and %.Values: Min, Max, Peak.Phase rotation.Speed of rotation.Energy measurement.Temperature (PT100).Memory: 99 pages max.Bandwidth: 40 → 70 Hz.Sampling frequency: 12.8 kHz.B&W display.C.A 8230 (P01160630B)V Max: 600 VRMS.I (max) Arms to 3000 A.Power: 1.2 W → 3.4 W – VA, var, PF / Cos / Tan.Accuracy: 0.5%.Harmonics: THD, 1 to 50th order rk rms and %, DF.Values: Min, Max, Peak.Functions: Threshold monitoring.Records up to several days.Event capture.Energy measurement.Engine start-up display.Memory: 1.5 MB.Bandwidth: 40 → 70 Hz.Sampling frequency: 12.8 kHz.Colour display.
