Sale!

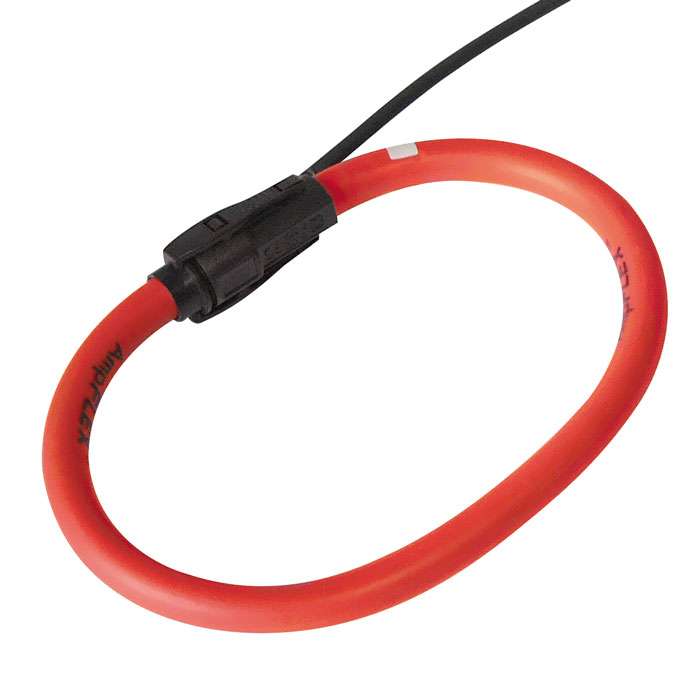

Chauvin Arnoux A196A 610mm Power Quality Clamp IP67 100mA to 10kA AC CAT.III (P01120554)

$ 99.87

DescriptionChauvin Arnoux A196A-610 Power Quality Clamp (IP67 rated)The perfect clamp for use with the Chauvin Arnoux Power Quality Analysers in an outdoor environment due to the IP67 rating of the sensor. This includes the CA8435 and PEL106 analysers and loggers.The A196A-610 offers a clamping diameter of 190mm, a length of 610mm and a measurement range of 100mA to 10kA AC.With an IEC 61010 rating of 1,000V CAT III / 600V CAT IVChauvin Arnoux part number: P01120554Chauvin Arnoux Power Quality Clamp OptionsModelMeasurement RangeClamping Ø / LengthIEC 61010MN93500mA to 200A AC20mm600V CAT III / 300V CAT IVMN 93A0.005A to 100A AC20mm600V CAT III / 300V CAT IVMA193100mA to 10kA ACØ 70 mm / 220 mm1,000V CAT III / 600V CAT IVPAC931A to 1,000A AC, 1A to 1,300A DC1 x Ø 39mm, 2 x Ø 25mm600V CAT III / 300V CAT IVA193-450 & A196-450100mA to 10kA ACØ 140mm / 450mm1,000V CAT III / 600V CAT IVA193-800100mA to 10kA ACØ 250mm / 800mm1,000V CAT III / 600V CAT IVC1931A to 1,000A AC52mm600V CAT IVE3N50mA to 10A AC/DC, 100mA to 100A AC/DC11.8mm600V CAT III / 300V CAT IV
