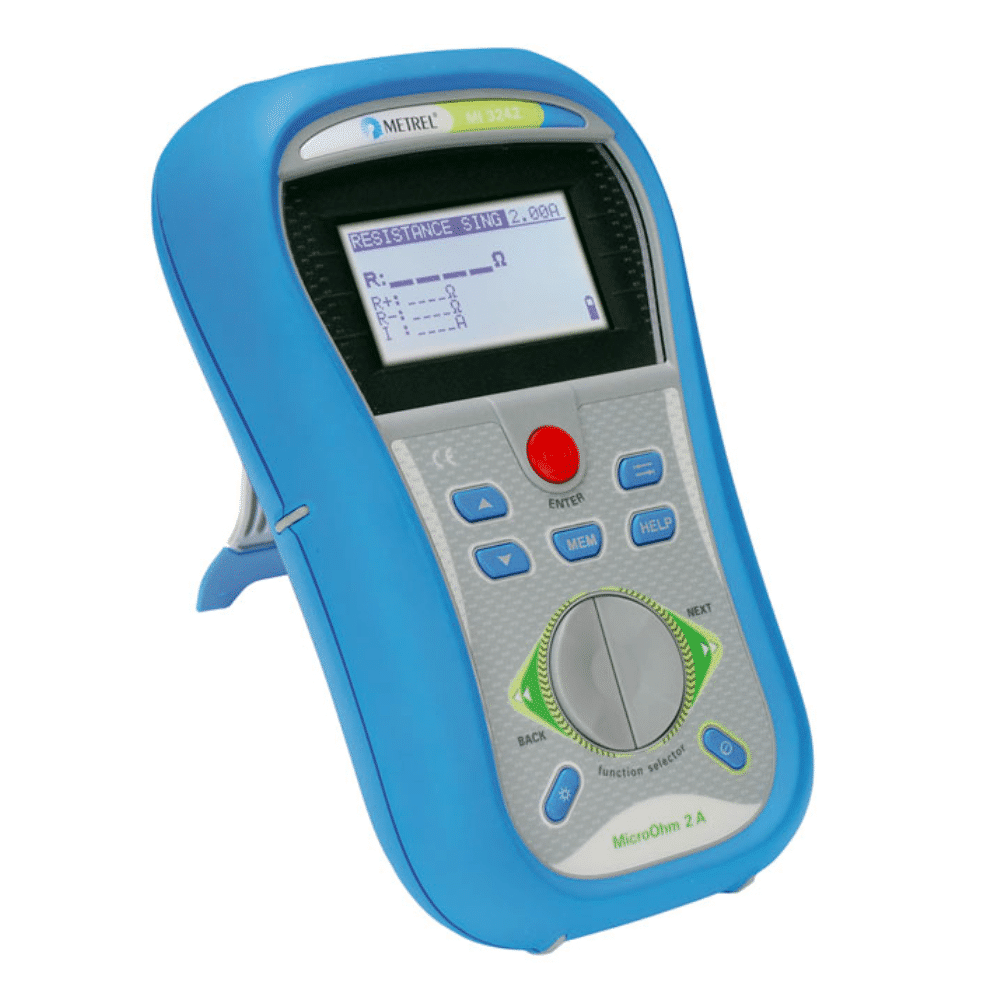

Metrel MI3242 2A Micro Ohmmeter

$ 99.43

DescriptionMetrel MI3242 2A Micro OhmmeterProduct Description:The Metrel MI3242 2A Micro Ohmmeter is a compact, lightweight, and highly accurate measuring instrument designed for low resistance testing in a wide range of applications. With the ability to measure resistance from as low as 1 μΩ up to 1999 Ω using a test current of up to 2A, this portable ohmmeter is particularly suited for fieldwork involving switches, relays, circuit breakers, connectors, power transformers, inductors, cable resistance, and more.Its robust construction and CAT III / 600V overvoltage protection ensure user safety and instrument durability, even in demanding environments. The MI3242 supports bidirectional resistance measurements and is equipped with 50 Hz / 60 Hz ripple detection and rejection for precise and interference-free results.Designed for user convenience, this meter features a large, backlit LCD for easy visibility in low-light settings and integrates intuitive pass/fail evaluation through pre-programmed limit settings, accompanied by green/red visual indicators. With an internal battery supporting over 800 measurements under typical conditions and a built-in memory capable of storing up to 1500 results with timestamps, users can rely on this instrument for extended sessions in the field.All recorded data can be downloaded, reviewed, and printed using the included HVLink PRO software, ensuring efficient documentation and reporting of test results.Key Features:Measures low resistance from 1 μΩ to 1999 Ω with test currents up to 2AHigh overvoltage protection (CAT III / 600V) for maximum safetyInternal safety protection circuit for user and device protectionSupports bidirectional resistance measurements50 Hz / 60 Hz ripple detection and rejection for improved accuracyPerforms over 800 measurements (500 mΩ load, 2A current, 15s duration) on a single battery chargeInternal memory can store up to 1500 test results with timestampsClear PASS/FAIL indication with green/red LED indicators based on pre-set limitsLarge, backlit LCD screen for easy reading in low lightData management and reporting through HVLink PRO PC softwareWhat’s Included:Metrel MI3242 2A Micro Ohmmeter2.5m 4-wire test cable4 x Crocodile clips (2 black, 2 red)2 x Test probesPower supply adapter6 x 1.2V NiMH rechargeable batteriesRS232 serial cableUSB cableSoft carrying bagPC software HVLink PROInstruction manualCalibration certificate
