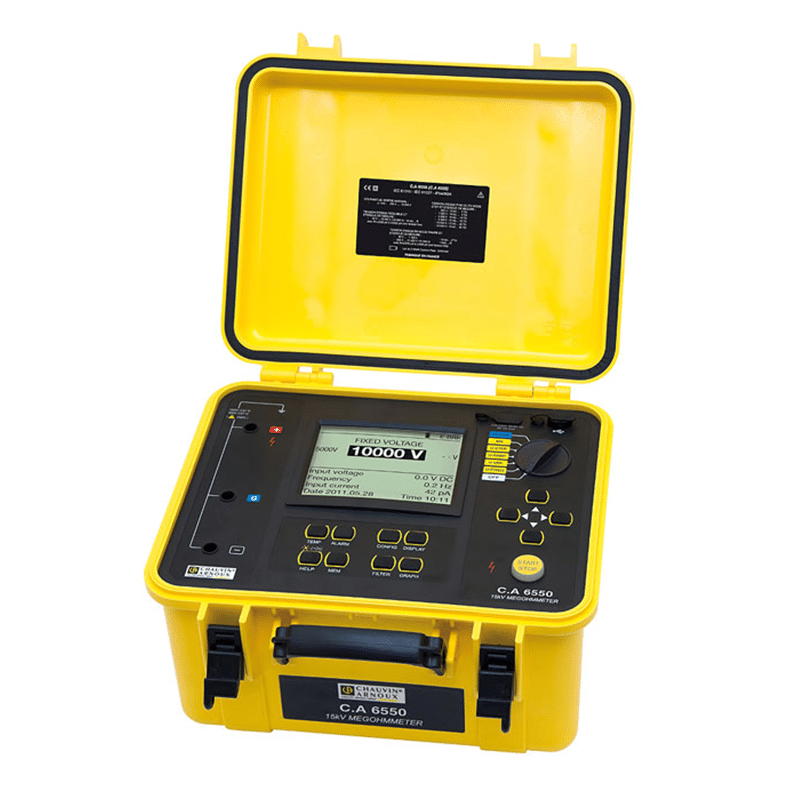

Chauvin Arnoux CA6550 10kV Megohmmeter

$ 97.87

DescriptionChauvin Arnoux CA6550 Digital Megohmmeter – 10kV High Voltage, 40V to 10,000V DC with Carry Case, Leads & SoftwareProduct Details:The Chauvin Arnoux CA6550 HV Insulation Tester is a powerful megohmmeter with a maximum test voltage of 10kV and an insulation resistance range of 10kΩ to 25TΩ. Fixed voltages are available from a minimum of 500V but a specific voltage between 40V and 10kV can be programmed according to the user’s needs. Voltage, capacitance and leakage current measurement add more depth to insulation inspection whilst voltage ramp and voltage step insulation testing (burning, early break, i-limits modes) help reveal drops in resistance at increased voltages. These capabilities make the instrument suitable for a range of sectors including electricity transmission and distribution.Several advanced features on the Chauvin Arnoux CA6550 make insulation analysis even more detailed. Polarisation index (PI) and dielectric absorption ratio (DAR) calculation negate reading variations related to temperature and humidity whilst programmable-duration testing prevents corrupt results due to transient current. Dielectric discharge calculation permits fault-finding on heterogenous insulation and relative mode can compare ppm/V ratios. Several graphs can be plotted using readings from the tester including R(t) u(t), i(t) or i(u).Aside from complex analysis, the Chauvin Arnoux CA6550 also offers a ‘Go/No go’ indication of insulation condition via its graphic LCD display. A filter mode helps smooth fluctuating readings and a reference temperature allows the tester to calculate resistance at the specific temperature. Excessive damage to insulation can be avoided by setting the tester to stop testing once a fault is detected whilst a burning mode allows destructive testing on samples.The Chauvin Arnoux CA6550’s large internal memory has space for up to 80,000 readings and these can be transferred to a PC via the supplied USB lead. DataView software is provided as standard to enable data transfer and analysis as well as reporting and trend mapping. Time stamps can be saved with files thanks to a real-time clock.A full set of accessories mean that the Chauvin Arnoux CA6550 is ready to use straight out of the box and it has a 12-month manufacturer’s warranty. A Cat IV 1000V rating certifies that is very safe to use whilst the light weight of just 6kg makes it easy to transport.Chauvin Arnoux part number: P01139705Key Features:Insulation resistance range: 10kΩ to 25TΩVoltage measurement: 0 to 2500V AC / 4000V DCCapacitance measurement: 0 to 49.99µFLeakage current measurement: 0 to 8mA‘Go/No go’ indicationPI / DAR ratio / DD calculationMultiple graphs displayed on-screen‘Burning’ mode for samplesAutomatic test step on finding faultLarge graphic LCD display80,000-measurement internal memoryUSB connectivityDataView software provided as standard Chauvin Arnoux Vs Megger – Find Your Best Match:Feature Megger MIT515Chauvin ArnouxCA 6505Chauvin ArnouxCA 6545 Megger MIT525Chauvin ArnouxCA 6547Chauvin ArnouxCA 6549 Megger MIT1025Chauvin ArnouxCA 6550 Megger MIT1525Chauvin  ArnouxCA 6555Best ForEntry-level 5kV testing, simple operationEntry-level insulation testing with low TΩ rangeMid-range testing with additional diagnosticsAdvanced 5kV testing with extra test typesHigh-precision testing up to 35 TΩMost versatile 5kV option with wide voltage rangeHigh-performance testing up to 20 TΩExtreme accuracy for high-resistance systemsUltimate high-voltage tester (15kV, versatile)Ultimate precision for demanding industrial systemsTest Voltage15.0 kV✔✔10.0 kV✔✔✔5.0 kV✔✔✔✔✔✔✔✔✔✔2.5 kV✔✔✔✔✔✔✔✔✔✔1.0 kV✔✔✔✔✔✔✔✔✔✔500 V✔✔✔✔✔✔✔✔250 V✔✔✔✔✔✔MeasurementMax reading10 TΩ10 TΩ10 TΩ10 TΩ20 TΩ50 TΩ20 TΩ50 TΩ30 TΩ100 TΩMin reading10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ10 kΩ1 kΩVoltage✔✔✔✔✔✔✔✔✔✔Capacitance✔✔✔✔✔✔✔✔✔✔Leakage current✔✔✔✔✔✔✔✔✔✔Test TypesTimed insulation resistance✔✔✔✔✔✔✔✔✔✔Polarisation index✔✔✔✔✔✔✔✔✔✔Dielectric absorption index✔✔✔✔✔✔✔✔✔✔Step voltage✔✔✔✔✔✔✔✔Dielectric discharge✔✔✔✔✔✔✔✔Ramp✔✔✔✔✔✔✔✔Other FeaturesAnalogue and digital display✔✔✔✔✔✔✔✔✔✔Short circuit current3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mARechargeable✔✔✔✔✔✔✔✔✔✔Timer control and display✔✔✔✔✔✔✔✔✔✔Max noise rejection3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mAUSB output✔✔✔✔SoftwarePowerDB LitePowerDB LitePowerDB LitePowerDB Lite
