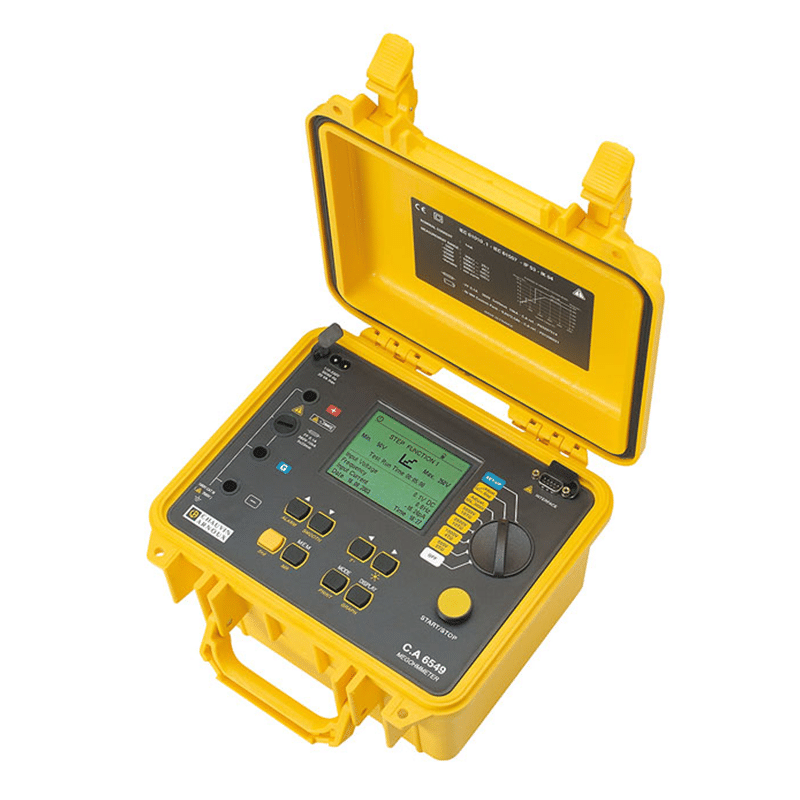

Chauvin Arnoux CA6549 Digital Megohmmeter – Graphical, 40V to 5000V DC with RS232 & Analysis Software

$ 90.22

DescriptionChauvin Arnoux CA6549 Digital Megohmmeter – Graphical, 40V to 5000V DC with RS232 & Analysis SoftwareProduct Details:The Chauvin Arnoux CA6549 HV Insulation Tester is a highly sophisticated megohmmeter with several advanced features in addition to insulation resistance measurement between 10kΩ and 10TΩ. Pre-set test voltages of 500V, 1000V, 2500V and 5000V are available whilst it is also possible to manually set the voltage between 40V and 5100V. Other measurements include capacitance (49.99F), voltage (5100V), and leakage current (3000A). Step voltage mode allows quantitative assessment of faulty insulation through a rising test voltage.Several additional options allow the user to make the most out of the Chauvin Arnoux CA6549’s expansive measurement capabilities. Adjustable alarms can be set by the user and the readout has a smoothing function for producing stable readings from fluctuating outputs. To help ensure accuracy, tests can be carried out with a programmable duration which negates problems related to stray transient current.Results are aided by polarisation index and dielectric absorption ratio which give a true picture of insulation quality whilst dielectric discharge measurement can detect faults in multi-layer or composite insulation. Aside from advanced, qualitative readings, a simple ‘Go/No go’ indication is also available.A major feature of the Chauvin Arnoux CA6549 is its large, graphic display. This can project a real-time R(t) graph on screen as well as providing clear, concise analytics across a wide range of different assessment criteria. A reference temperature can be set at the push of a button and internal memory allows storage of several thousand results.Readings can be transferred to a computer using the included RS-232 cable. From there, Chauvin Arnoux DataView software serves to map trends, print test protocols and create spreadsheet reports. Printing via a parallel or series printer is possible for instant hard copies whilst the hard casing and ergonomic, lightweight design make the Chauvin Arnoux CA6549 perfect for use on site. It has an IP53 ingression rating and is safety-rated as Cat III 1000V.Chauvin Arnoux part number: P01139703 Key Features:Insulation resistance range: 10kΩ to 10TΩFully adjustable test voltage from 40V to 5100VPre-set test voltages of 500V, 1000V, 2500V, 5000VProgrammable, timed tests‘Go/no go’ indicationPI / DAR ratio tests insulation qualityDielectric discharge index for composite insulationLarge, graphical displayR(t) projection on screenSmoothing function for fluctuating readingsProgrammable alarmsRS232 communication cableInternal memory for thousands of readings30-hour rechargeable battery lifeChauvin Arnoux Vs Megger – Find Your Best Match:Feature Megger MIT515Chauvin ArnouxCA 6505Chauvin ArnouxCA 6545 Megger MIT525Chauvin ArnouxCA 6547Chauvin ArnouxCA 6549 Megger MIT1025Chauvin ArnouxCA 6550 Megger MIT1525Chauvin  ArnouxCA 6555Best ForEntry-level 5kV testing, simple operationEntry-level insulation testing with low TΩ rangeMid-range testing with additional diagnosticsAdvanced 5kV testing with extra test typesHigh-precision testing up to 35 TΩMost versatile 5kV option with wide voltage rangeHigh-performance testing up to 20 TΩExtreme accuracy for high-resistance systemsUltimate high-voltage tester (15kV, versatile)Ultimate precision for demanding industrial systemsTest Voltage15.0 kV✔✔10.0 kV✔✔✔5.0 kV✔✔✔✔✔✔✔✔✔✔2.5 kV✔✔✔✔✔✔✔✔✔✔1.0 kV✔✔✔✔✔✔✔✔✔✔500 V✔✔✔✔✔✔✔✔250 V✔✔✔✔✔✔MeasurementMax reading10 TΩ10 TΩ10 TΩ10 TΩ20 TΩ50 TΩ20 TΩ50 TΩ30 TΩ100 TΩMin reading10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ10 kΩ1 kΩVoltage✔✔✔✔✔✔✔✔✔✔Capacitance✔✔✔✔✔✔✔✔✔✔Leakage current✔✔✔✔✔✔✔✔✔✔Test TypesTimed insulation resistance✔✔✔✔✔✔✔✔✔✔Polarisation index✔✔✔✔✔✔✔✔✔✔Dielectric absorption index✔✔✔✔✔✔✔✔✔✔Step voltage✔✔✔✔✔✔✔✔Dielectric discharge✔✔✔✔✔✔✔✔Ramp✔✔✔✔✔✔✔✔Other FeaturesAnalogue and digital display✔✔✔✔✔✔✔✔✔✔Short circuit current3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mARechargeable✔✔✔✔✔✔✔✔✔✔Timer control and display✔✔✔✔✔✔✔✔✔✔Max noise rejection3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mAUSB output✔✔✔✔SoftwarePowerDB LitePowerDB LitePowerDB LitePowerDB Lite
