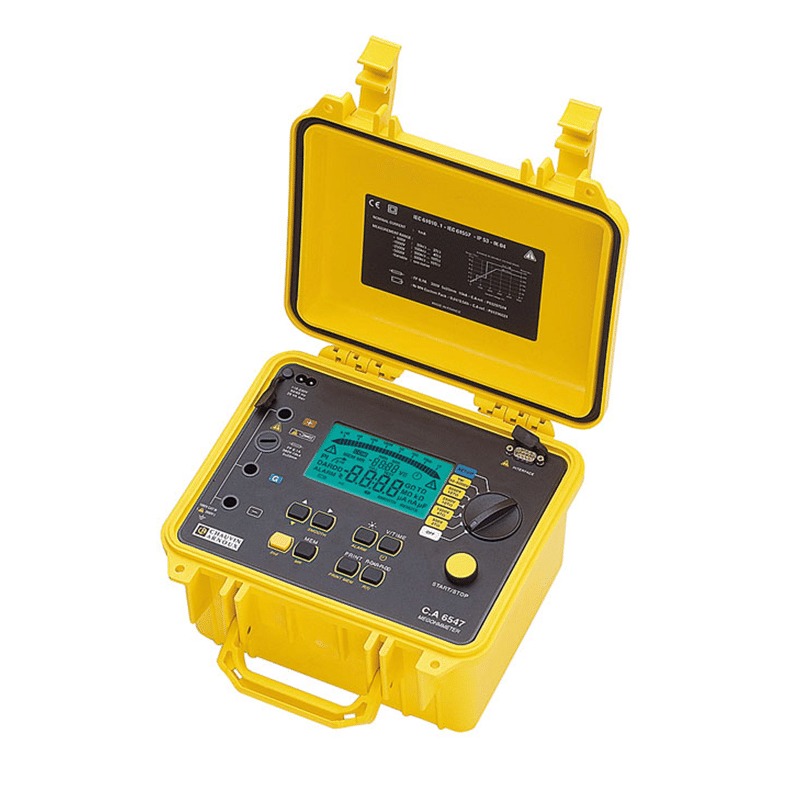

Chauvin Arnoux CA6547 Digital Megohmmeter – 50V to 5000V Insulation Resistance Tester with Timed IR, PI, DAR, Step Voltage & RS232 Connectivity

$ 96.93

DescriptionChauvin Arnoux CA6547 Digital Megohmmeter – 50V to 5000V Insulation Resistance Tester with Timed IR, PI, DAR, Step Voltage & RS232 ConnectivityProduct Details:The Chauvin Arnoux CA6547 HV Insulation Tester is a high voltage megohmmeter that can also measure voltage up to 5100V, capacitance up to 49.99F and leakage current up to 3000A. Insulation resistance can be measured from 10kΩ to 10TΩ thanks to a test voltage which can be fully adjusted between 40V and 5100V or pre-set at 500V, 1000V, 2500V or 5000V.Several advanced features on the Chauvin Arnoux CA6547 offer enhanced measurement analysis as well as a simplified ‘Go/No go’ indication of insulation quality. Polarisation index and dielectric absorption ratio give insulation quality assessment that makes adjustments for temperature and humidity whilst dielectric discharge index reveals impurities and faults in heterogenous or multi-layered insulation.Programmable alarms for high or low resistance can be set by the user and a smoothing function helps produce a stable reading when fluctuations are present. The test duration can be programmed by the user to make sure that transient currents do not interfere with results. An R(t) graph can be plotted using the samples provided by the CA6547 during a programmed-duration test.The smart capabilities of the Chauvin Arnoux CA6547 allow the user to keep hold of results on the instrument itself as well as transferring them to a computer via an RS232 communication cable. Optional DataView software allows the user to recover readings, map trends and create reports whilst hard copies of results can be produced through an optional parallel printer.Practical features including a wide range of accessories make the Chauvin Arnoux CA6547 very easy to use. The LCD screen shows results clearly and simply and operation is carried out through a clearly-labelled dial and buttons. It is light and easy to manoeuvre on site and has protective, IP53-rated casing to withstand the rigours of regular use.Chauvin Arnoux part number: P01139702 Key Features:Insulation resistance measurement: 10kΩ to 10TΩFully adjustable test voltage from 40V to 5100VPre-set test voltages of 500V, 1000V, 2500V, 5000VProgrammable-duration tests‘Go/no go’ insulation status indicationPI / DAR ratio tests insulation qualityDielectric discharge index for heterogeneous insulationR(t) samplingSmoothing functionProgrammable alarmsRS232 communication cableInternal storage for readings30-hour rechargeable battery life#Chauvin Arnoux Vs Megger – Find Your Best Match:Feature Megger MIT515Chauvin ArnouxCA 6505Chauvin ArnouxCA 6545 Megger MIT525Chauvin ArnouxCA 6547Chauvin ArnouxCA 6549 Megger MIT1025Chauvin ArnouxCA 6550 Megger MIT1525Chauvin  ArnouxCA 6555Best ForEntry-level 5kV testing, simple operationEntry-level insulation testing with low TΩ rangeMid-range testing with additional diagnosticsAdvanced 5kV testing with extra test typesHigh-precision testing up to 35 TΩMost versatile 5kV option with wide voltage rangeHigh-performance testing up to 20 TΩExtreme accuracy for high-resistance systemsUltimate high-voltage tester (15kV, versatile)Ultimate precision for demanding industrial systemsTest Voltage15.0 kV✔✔10.0 kV✔✔✔5.0 kV✔✔✔✔✔✔✔✔✔✔2.5 kV✔✔✔✔✔✔✔✔✔✔1.0 kV✔✔✔✔✔✔✔✔✔✔500 V✔✔✔✔✔✔✔✔250 V✔✔✔✔✔✔MeasurementMax reading10 TΩ10 TΩ10 TΩ10 TΩ20 TΩ50 TΩ20 TΩ50 TΩ30 TΩ100 TΩMin reading10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ10 kΩ1 kΩVoltage✔✔✔✔✔✔✔✔✔✔Capacitance✔✔✔✔✔✔✔✔✔✔Leakage current✔✔✔✔✔✔✔✔✔✔Test TypesTimed insulation resistance✔✔✔✔✔✔✔✔✔✔Polarisation index✔✔✔✔✔✔✔✔✔✔Dielectric absorption index✔✔✔✔✔✔✔✔✔✔Step voltage✔✔✔✔✔✔✔✔Dielectric discharge✔✔✔✔✔✔✔✔Ramp✔✔✔✔✔✔✔✔Other FeaturesAnalogue and digital display✔✔✔✔✔✔✔✔✔✔Short circuit current3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mARechargeable✔✔✔✔✔✔✔✔✔✔Timer control and display✔✔✔✔✔✔✔✔✔✔Max noise rejection3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mAUSB output✔✔✔✔SoftwarePowerDB LitePowerDB LitePowerDB LitePowerDB Lite
