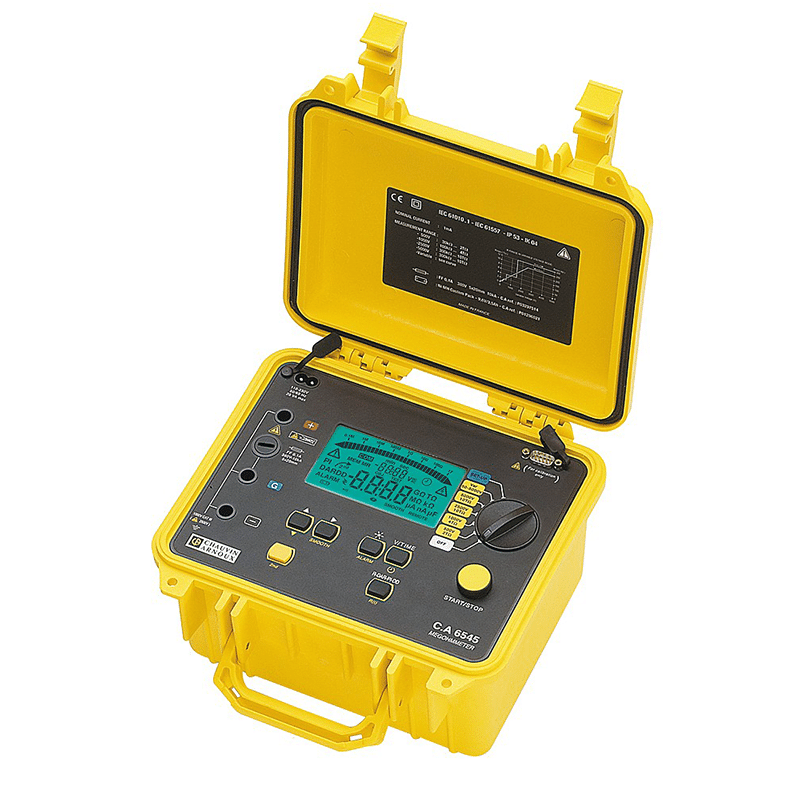

Chauvin Arnoux CA6545 Digital Megohmmeter – 5kV Insulation Resistance Tester with Timed IR, PI, DAR & Step Voltage

$ 97.99

DescriptionChauvin Arnoux CA6545 Digital MegohmmeterProduct Details:The Chauvin Arnoux CA6545 is used to carry out extensive testing of insulation on high voltage systems.Ideal for both qualitative and quantitative analysis of insulation resistance, this device can be used to measure from 30kΩ to 10TΩ with 4 fixed test voltages of 500, 1000, 2500 and 5000V. The test voltages are also programmable, with 40 to 5,100 in increments of 10V or 100V.The qualitative analysis functions of the CA6545 allow it to carry out automatic calculation of DAR< PI and DDD (dielectric discharge) ratios and tracing of R(t) curves.Additional functions of this unit includes programmed testing duration, lock-down of test voltage, smooth function, programmable alarms and runs on rechargeable batteries.Key Features:Wide testing range from 30kΩ to 10TΩ4 fixed test voltages 500, 1000, 2500 and 5000Programmable test voltage positionsLarge size LCD screenDigital display bargraphAutomatic calculation of DAR, PI, DD ratiosTracing of R(t) curveProgrammed test durationLock down test voltagesSmooth functionProgrammable alarmsRechargeable NiMH batteries last for 30 days Chauvin Arnoux Vs Megger – Find Your Best Match:Feature Megger MIT515Chauvin ArnouxCA 6505Chauvin ArnouxCA 6545 Megger MIT525Chauvin ArnouxCA 6547Chauvin ArnouxCA 6549 Megger MIT1025Chauvin ArnouxCA 6550 Megger MIT1525Chauvin  ArnouxCA 6555Best ForEntry-level 5kV testing, simple operationEntry-level insulation testing with low TΩ rangeMid-range testing with additional diagnosticsAdvanced 5kV testing with extra test typesHigh-precision testing up to 35 TΩMost versatile 5kV option with wide voltage rangeHigh-performance testing up to 20 TΩExtreme accuracy for high-resistance systemsUltimate high-voltage tester (15kV, versatile)Ultimate precision for demanding industrial systemsTest Voltage15.0 kV✔✔10.0 kV✔✔✔5.0 kV✔✔✔✔✔✔✔✔✔✔2.5 kV✔✔✔✔✔✔✔✔✔✔1.0 kV✔✔✔✔✔✔✔✔✔✔500 V✔✔✔✔✔✔✔✔250 V✔✔✔✔✔✔MeasurementMax reading10 TΩ10 TΩ10 TΩ10 TΩ20 TΩ50 TΩ20 TΩ50 TΩ30 TΩ100 TΩMin reading10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ1 kΩ10 kΩ1 kΩ10 kΩ1 kΩVoltage✔✔✔✔✔✔✔✔✔✔Capacitance✔✔✔✔✔✔✔✔✔✔Leakage current✔✔✔✔✔✔✔✔✔✔Test TypesTimed insulation resistance✔✔✔✔✔✔✔✔✔✔Polarisation index✔✔✔✔✔✔✔✔✔✔Dielectric absorption index✔✔✔✔✔✔✔✔✔✔Step voltage✔✔✔✔✔✔✔✔Dielectric discharge✔✔✔✔✔✔✔✔Ramp✔✔✔✔✔✔✔✔Other FeaturesAnalogue and digital display✔✔✔✔✔✔✔✔✔✔Short circuit current3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mARechargeable✔✔✔✔✔✔✔✔✔✔Timer control and display✔✔✔✔✔✔✔✔✔✔Max noise rejection3 mA3 mA3 mA3 mA3 mA3 mA3 mA3 mA4 mA4 mAUSB output✔✔✔✔SoftwarePowerDB LitePowerDB LitePowerDB LitePowerDB Lite
