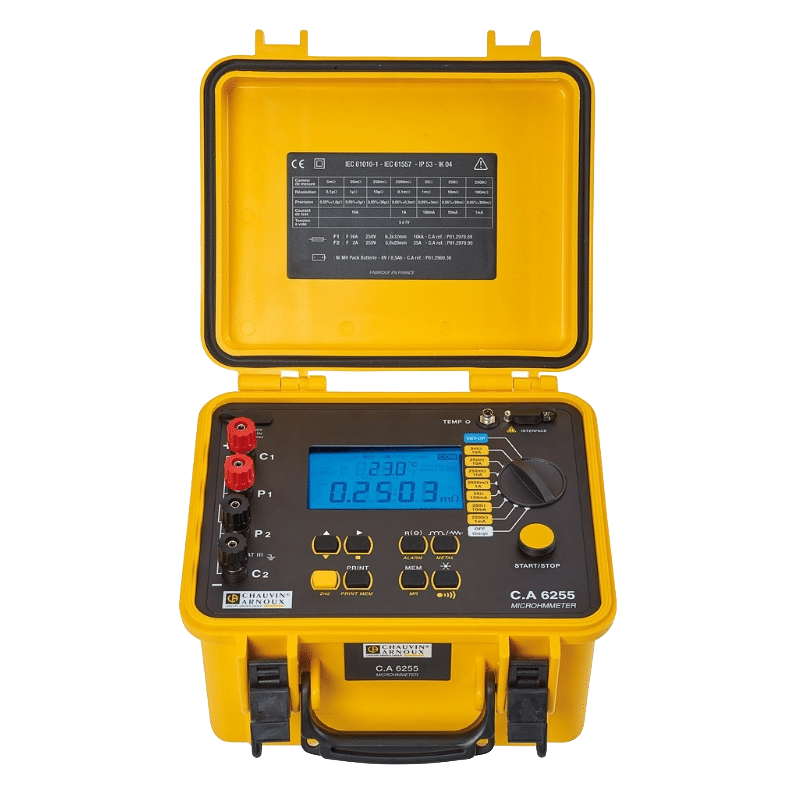

Chauvin Arnoux CA6255 Precision Microhmmeter with 4-Wire Measurement and Kelvin Clamps

$ 92.56

DescriptionChauvin Arnoux CA6255, 10A Microhmmeter c/w 2m Kelvin Clamp Cables Product Description:The Chauvin Arnoux CA6255 Precision Micro Ohmmeter is a high-accuracy instrument designed to measure low resistance with extreme precision. Ideal for electrical professionals, this micro ohmmeter offers resistance measurement capabilities ranging from 0 to 2500Ω and a maximum resolution of 0.1µΩ, ensuring highly accurate results. It features adjustable test currents from 10A to 1mA, making it adaptable to a wide variety of testing applications. The built-in memory allows storage of up to 1500 readings, which can be easily retrieved and organized under different test indices. Additionally, the CA6255 incorporates advanced temperature and stray voltage compensation through a Pt100 probe for reliable performance in varying environmental conditions. With versatile measurement modes, including non-inductive, inductive, and non-inductive with auto trigger, it is designed to meet the diverse needs of electrical and industrial testing.Key Features:Resistance measurement range of 0 to 2500Ω with a resolution down to 0.1µΩ.Adjustable test currents from 10A to 1mA for flexible testing.Internal memory stores up to 1500 readings, sorted by object and test index.Pt100 probe for temperature compensation and stray voltage compensation, ensuring accurate readings in varied conditions.Three measurement modes: non-inductive, inductive, and non-inductive with auto trigger, catering to different types of components.Basic accuracy of ±0.05% 1µΩ using the four-wire measurement method with current reversal for high precision.User-friendly interface with a large, backlit LCD display for easy operation in all lighting conditions.Audible alarms for high and low threshold settings for safety and convenience.Leakproof and robust design rated to IP53 and Cat III 50V, offering durability in demanding work environments.RS-232 connectivity for downloading data to a PC and performing advanced analysis with optional DataView software.What’s Included:Chauvin Arnoux CA6255 Micro Ohmmeter1 set of 3m cables terminated by Kelvin clampsEuro mains power lead (2m long)User manuals (available in 9 languages)Simplified user guides (available in 9 languages)MOT (Micro-Ohmmeter Transfer) data transfer software on CD-ROMRS232 communication cableComparison of Digital Low Resistance OhmmetersFeatureMegger DLRO10Megger DLRO10XChauvin Arnoux CA6240Megger DLRO10HDMegger DLRO10HDXChauvin Arnoux CA6255Resistance Range0.1 µΩ to 2,000 Ω0.1 µΩ to 2,000 Ω5 µΩ to 400 Ω0.1 µΩ to 2,000 Ω0.1 µΩ to 2,000 Ω1 µΩ to 2,500 ΩTest CurrentUp to 10 AUp to 10 AUp to 10 AUp to 10 AUp to 10 AUp to 10 A (3 ranges)Test ModesManual, Auto, Continuous, InductiveManual, Auto, Continuous, Inductive, UnidirectionalManual, AutomaticManual, Auto, Continuous, InductiveManual, Auto, Continuous, InductiveInductive, Non-Inductive, Non-Inductive w/ auto triggerMeasurement ControlFully AutomaticFully Automatic / ManualManual, AutomaticFully AutomaticFully AutomaticManual, AutomaticMeasurement Speed<3s for forward and reverse current, average display<3s for forward and reverse current, average displayN/A<3s for forward and reverse current, average display<3s for forward and reverse current, average display<3s for forward and reverse current, average displayTest MethodSingle-cycle, reversing DC ratiometric measurementSingle-cycle, reversing DC ratiometric measurementN/ASingle-cycle, reversing DC ratiometric measurementSingle-cycle, reversing DC ratiometric measurementN/ATest Current Accuracy±10%±10%±10%±10%±10%±10%Test Current Stability<10 ppm per second<10 ppm per second<10 ppm per second<10 ppm per second<10 ppm per second<10 ppm per secondLead ResistanceMax. 100 mΩ for 10 A operationMax. 100 mΩ for 10 A operationN/AMax. 100 mΩ for 10 A operationMax. 100 mΩ for 10 A operationN/AVoltmeter Input Impedance>200 kΩ>200 kΩ>200 kΩ>200 kΩ>200 kΩ>200 kΩNoise Rejection<1% ±20 digits additional error with 100 mV 50/60 Hz<1% ±20 digits additional error with 100 mV 50/60 Hz<1% ±20 digits additional error with 100 mV 50/60 Hz<1% ±20 digits additional error with 100 mV 50/60 Hz<1% ±20 digits additional error with 100 mV 50/60 Hz<1% ±20 digits additional error with 100 mV 50/60 HzData TransferNoneReal-Time or from storage via RS232NoneNoneReal-Time or from storage via RS232NoneData StorageNone700 tests100 measurements200 test records200 test records1,500 measurementsMemo FieldNoneUp to 200 characters per test via integral keypadNoneNoneNoneNoneBattery Type7Ah NiMH rechargeable7Ah NiMH rechargeableNiMH rechargeable battery6V 7Ah sealed lead-acid6V 7Ah sealed lead-acidNiMH rechargeable batteryBattery Life1000 x 10 A tests1000 x 10 A testsNot specified>1000 Auto (3 sec) tests>1000 Auto (3 sec) testsNot specifiedBattery Charge Time2.5 hours to 90%, 4 hours full charge2.5 hours to 90%, 4 hours full chargeApprox. 6 hours8 hours8 hours2.5 hours to 90%, 4 hours full chargeOperating Temperature 5°C to 45°C (Full Accuracy) 5°C to 45°C (Full Accuracy)Not specified-10°C to 50°C-10°C to 50°C 5°C to 45°C (Full Accuracy)Storage Temperature-30°C to 70°C-30°C to 70°C-30°C to 70°C-25°C to 60°C-25°C to 60°C-30°C to 70°CTemperature Coefficient<0.01% per °C from 5°C to 40°C<0.01% per °C from 5°C to 40°CN/A<0.01% per °C from 5°C to 40°C<0.01% per °C from 5°C to 40°C<0.01% per °C from 5°C to 40°CMaximum Altitude2,000m (6562 ft)2,000m (6562 ft)N/A2,000m (6562 ft)2,000m (6562 ft)2,000m (6562 ft)Safety RatingCAT III 600 V (with DH6 leads)CAT III 600 V (with DH6 leads)CAT III 50 VIn accordance with IEC61010-1, CATIII 300V (w/ cover)In accordance with IEC61010-1, CATIII 300V (w/ cover)CAT III 50 VEMC RatingIP65 (case closed), IP54 (battery operation)IP65 (case closed), IP54 (battery operation)IP53IP65 (case closed), IP54 (battery operation)IP65 (case closed), IP54 (battery operation)IP53Dimensions (mm)220 x 100 x 237220 x 100 x 237273 x 247 x 280315 x 285 x 181315 x 285 x 181270 x 250 x 180Weight (kg)2.62.656.76.74
