Sale!

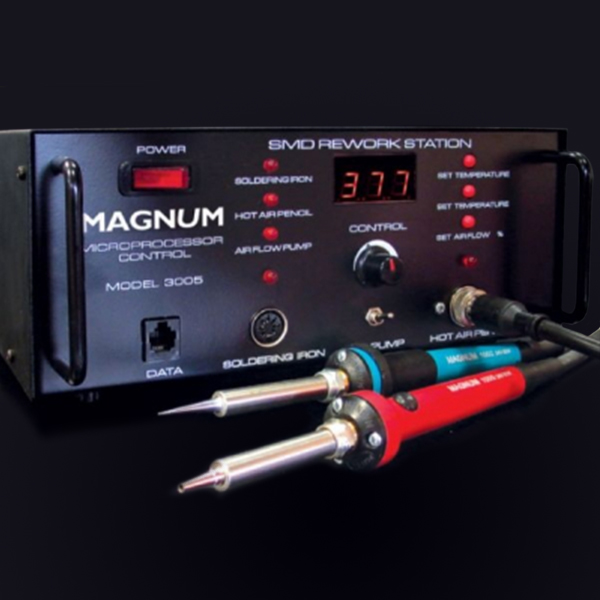

Rework Station Magnum

$ 98.41

Description SMD Rework Station 3005 The 3005 temperature-controlled station is precision engineered to perform on-demand for all your SMD rework and repair. The Hot Air Pencil is designed for effortless removal of the components and the Soldering iron is used for their replacement. Both the temperature range and percentage of air flow are monitored and adjusted on-demand. The PCU (Portable Configuration Unit), used as a storage device for downloading parameters from a PC onto the Station, locks all the parameters including the energy saving mode. The PCCU (Portable Configuration and Calibration Unit) automatically calibrate the Hot Air Pencil and the Soldering Iron to an accurate certified source. Microprocessor controlled 3005 station. 1005 100W Hot air pencil with air flow button. 1002/80W Soldering Iron with soft grip. Moulded power cord. 1.5MM Round and 3MM flat hot air nozzles. Fine soldering iron tip. Two cast iron spring stands. SMD removal kit. Input 220V–240V 50/60Hz 0.6 amps Power 1A 5mm fast blow fuse Output 2 x 24v 85w AC Air Flow 1.5 to 10 litres/min Temperature      Soldering iron 100° to 450° ±4°C      Hot air pencil 180° to 480° ±10°C Dimensions L250mm x W250mm x H105mm Weight 4 KGS (8.8LBS)   All MAGNUM Stations comes with cleaning equipment, spare tips and a comprehensive instruction manual
