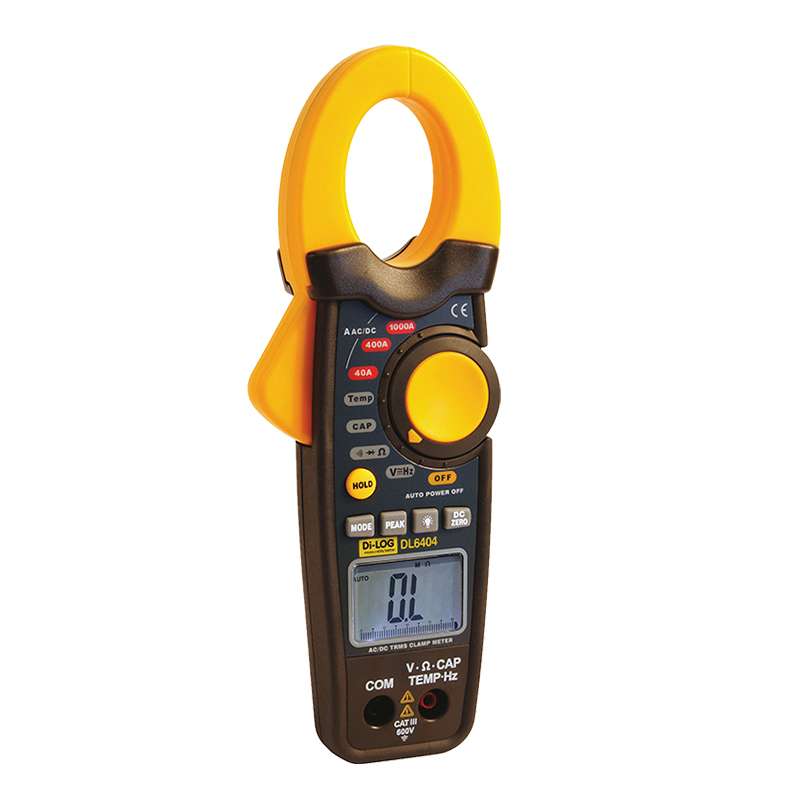

Di-Log DL6404 1000A AC/DC Digital Clamp Meter

$ 96.48

DescriptionDiLOG DL6404 True RMS Clamp MeterProduct Description:The top of the range DL6404 provides True RMS reading on AC current and AC voltages allowing accurate measurement regardless of the wave form. This makes it the ideal instrument for commercial and industrial applications where non linear loads are present.The 40 segment analogue bar graph in addition to the 4000 count LCD provides clear and precise indication of readings.The slim design combined with the tear shaped jaw makes it an ideal unit for use in crowded panels and tight spaces.Key Features:True RMS Current and voltage readingsAudible ContinuityResistance up to 40 MΩTemperature thermocouple and K-Type adaptor suppliedFrequency and capacitance30 mm jaw opening1000 amp AC/DC Current readingElectronic overload protectionCurrent AC/DCTRMSTemperature MeasurementResistance MeasurementFrequency MeasurementVoltage AC/DCBacklit LCD ScreenBacklit LCD ScreenCurrent AC/DCFrequency MeasurementResistance MeasurementTemperature MeasurementTRMSVoltage AC/DCSpecifications:AC Current true RMS 0.01A – 1000ADC Current 0.01A – 1000AAC Voltage True RMS 0.1mV – 600VDC Voltage 0.1mV – 600VResistance 0.1Ω – 40MΩCapacitance 4.000nF – 40mFFrequency 4.000kHzTemperature -20°C – 1000°C -4°F – 1832°FDiode Test 1.5V DC TypicalPower supply 1 x 9 V batteryDimensions 229 x 80 x 49 mmWeight 303gWhat’s In The Box?DiLOG DL6404 True RMS Clamp Meter
