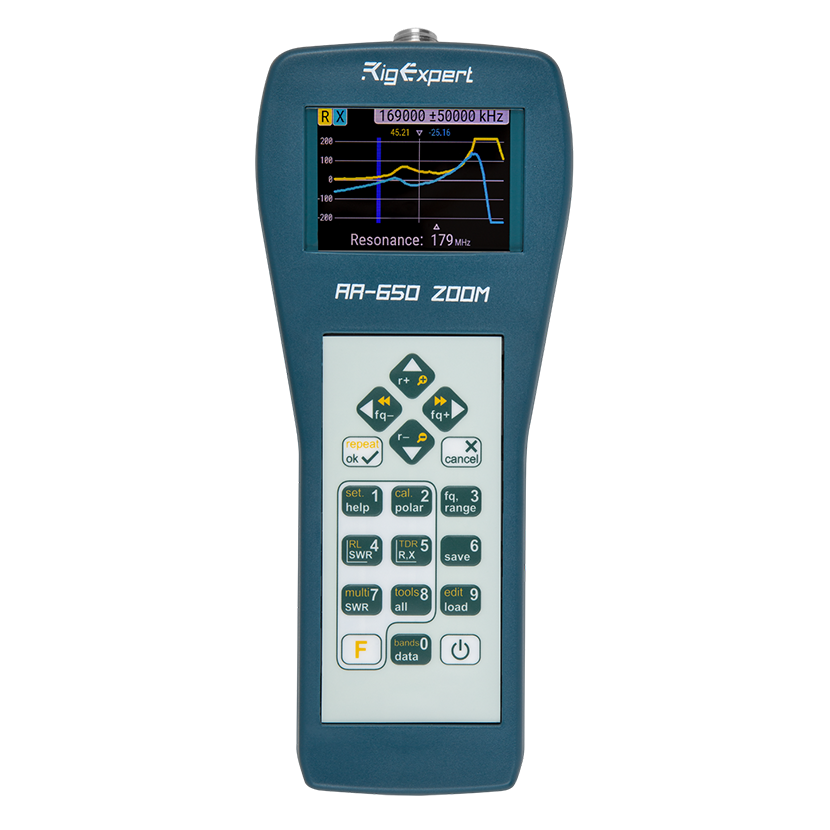

Antenna Analyzer AA650-ZOOM Rigexpert

$ 91.98

If you’re a licenced ham radio operator, we may be able to provide discount on certain models – please contact us. Frequency range 0.1 to 650 MHz Frequency entry 1 kHz Measurement for systems 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm SWR measurement range 1 to 10 in chart modes 1 to 100 in numerical modes R and X range 0…2000, -2000…2000 Display modes Optional open-short-load calibration R, X chart, 20 to 500 points Return loss chart, 20 to 500 points Smith chart, 20 to 500 points SWR at single or multiple frequencies SWR chart, 20 to 500 points TDR chart (Time Domain Reflectometer) Сable tools (StubTuner, Cable Length, Impedance, Loss measurements) RF output Connector type: N Output power: -10 dBm (at a load of 50 ohms) Output signal shape: square Power Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used Three 1.2V Ni-MH batteries, type AA Three 1.5V alkaline batteries, type AA When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources Interface 320×240 color TFT display 6×3 keys on the water-proof keypad Bluetooth Specification v.4.2, LE Menus and help screens in English (by default), Japanese, Ukrainian, Polish, Spanish and German USB connection to a personal computer Operating temperature 0…40 °C (32…104 °F) Weight 450 g (15.9 oz) Dimensions 100 × 230 × 55 mm, (4 × 9 × 2 in) Accessories inside the box Soft case, battery charger, rechargeable batteries, USB cable, N to UHF adapter GTIN-13 4820185420297 Note Specifications are subject to change without notice Мade in Ukraine NCAGE Code A37ZJ
