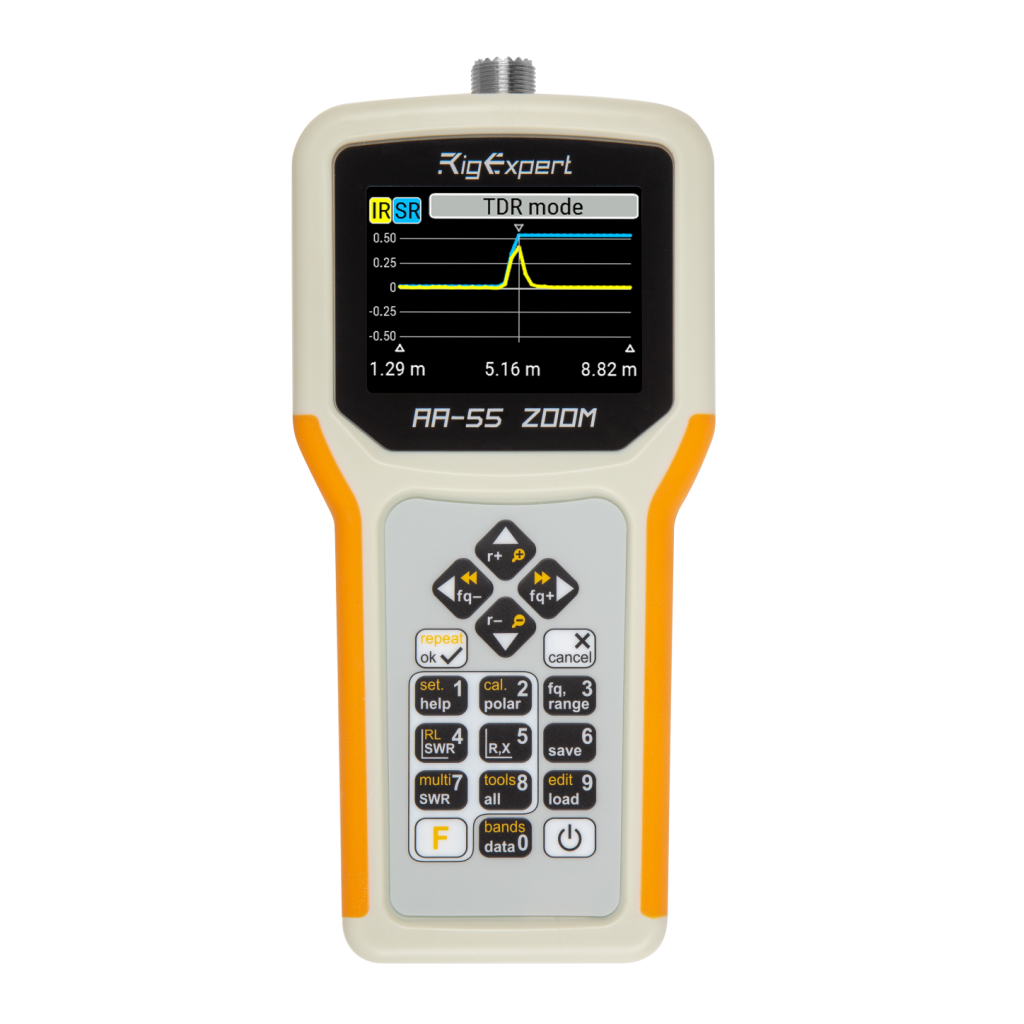

Antenna Analyzer AA55-ZOOM BlueTooth Rigexpert

$ 92.48

Currently on Super Sale! If you’re a licenced ham radio operator, we may be able to provide discount on certain models – please contact us. Frequency range 0.06 to 55 MHz Frequency entry 1 kHz Measurement for systems 25, 50, 75, 100 Ohm SWR measurement range 1 to 10 in chart modes 1 to 100 in numerical modes R and X range 0…1000, -1000…1000 in chart modes 0…10000, -10000…10000 in numerical modes Display modes R, X chart, 100 points Return loss chart, 100 points Smith chart, 100 points SWR at single or multiple frequencies SWR chart, 100 points SWR, return loss, R, X, Z, L, C at single frequency RF output Connector type: UHF (SO-239) Output power: 13 dBm (at 50 Ohm load) Output signal shape: square Power Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used Two 1.2V Ni-MH batteries, type AA Two 1.5V alkaline batteries, type AA When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources Interface 320×240 color TFT display 6×3 keys on the water-proof keypad Menus and help screens in English (by default), Japanese, French USB connection to a personal computer Dimensions 103 mm x 207 mm x 37 mm (4.1 in x 8.1 in x 1.4 in) Operating temperature 0…40 °C (32…104 °F) Weight 310 g (10.9 Oz) w/o batteries GTIN-13 4820185420099 Note Specifications are subject to change without notice Мade in Ukraine Accessories inside the box Alkaline batteries RigExpert AA-55 ZOOM Soft case USB cable User’s manual
