Sale!

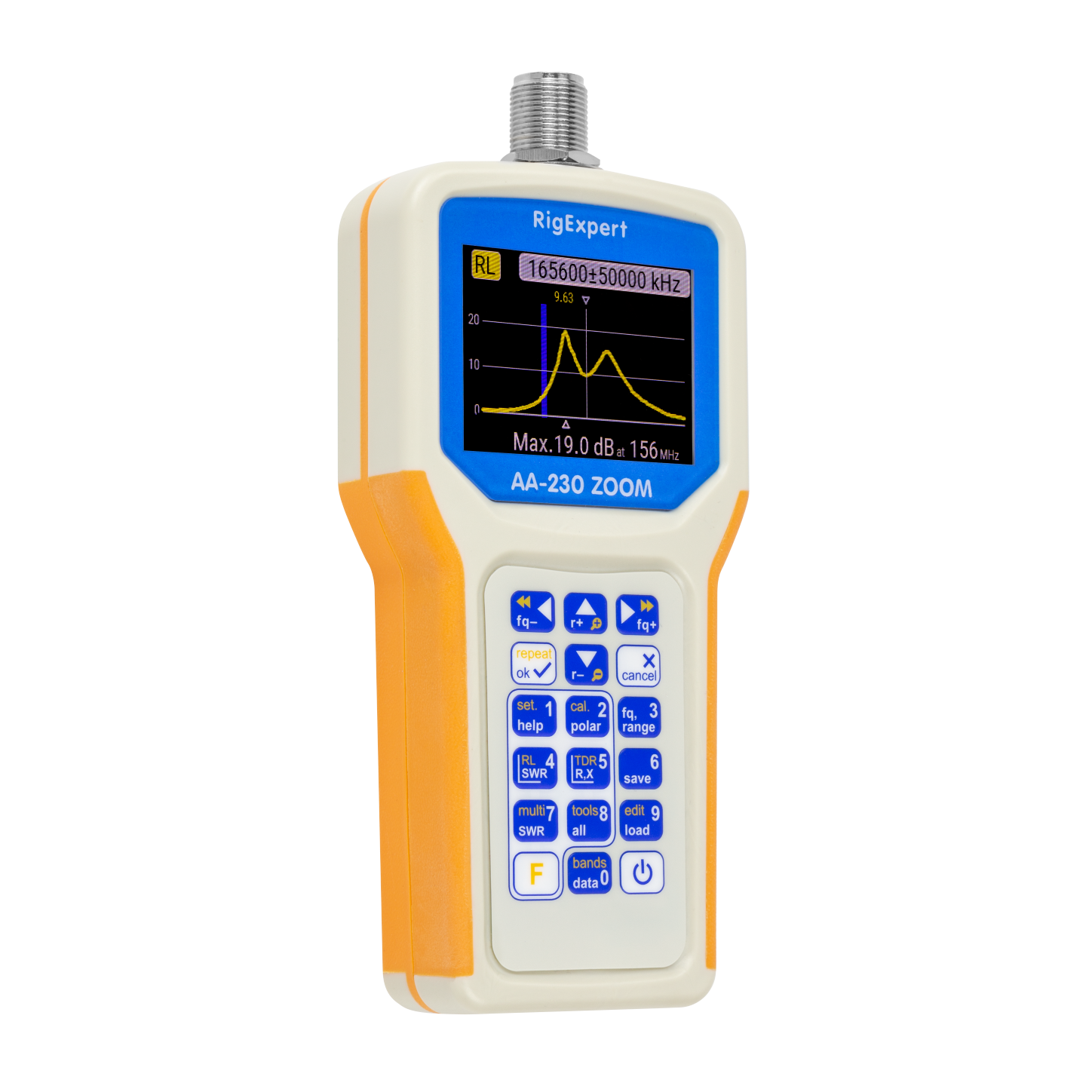

Antenna Analyzer AA-230 ZOOM Rigexpert

$ 93.52

Currently on Super Sale! If you’re a licenced ham radio operator, we may be able to provide discount on certain models – please contact us. Frequency range 0.1 to 230 MHz Frequency entry 1 kHz Measurement for systems 25, 50, 75, 100, 150, 200, 300, 450 and 600 Ohm SWR measurement range 1 to 10 in chart modes 1 to 100 in numerical modes R and X range 0…1000, -1000…1000 in chart modes 0…10000, -10000…10000 in numerical modes Display modes Optional open-short-load calibration R, X chart, 20 to 500 points Return loss chart, 20 to 500 points Smith chart, 20 to 500 points SWR at single or multiple frequencies SWR chart, 20 to 500 points TDR chart (Time Domain Reflectometer) Сable tools (StubTuner, Cable Length, Impedance, Loss measurements) RF output Connector type: N Output power: -10 dBm (at a load of 50 ohms) Output signal shape: square Power Four 1.2V Ni-MH batteries, type AAA Four 1.5V alkaline batteries, type AAA Max. 4 hours of continuous measurement, max. 2 days in standby mode when fully charged batteries are used When the analyzer is connected to a PC or a DC adapter with USB socket, it takes power from these sources Interface 290×220 color TFT display 6×3 keys on the water-proof keypad Bluetooth Specification v.4.2, LE Menus and help screens in English (by default), Japanese USB connection to a personal computer Dimensions 82 x 182 x 32 mm (3.2 x 7.2 x 1.3 in) Operating temperature 0…40 °C (32…104 °F) Weight 236 g (8.32 oz) Accessories inside the box Alkaline batteries N Male SO-239 Female adaptor Soft case USB cable User’s manual GTIN-13 4820185420082 Note Specifications are subject to change without notice Мade in Ukraine
